Applications:

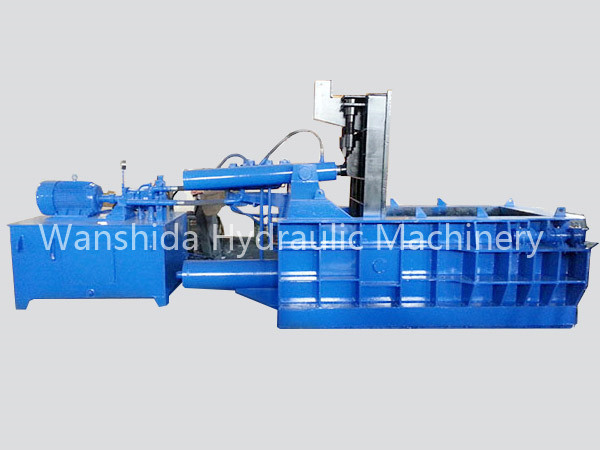

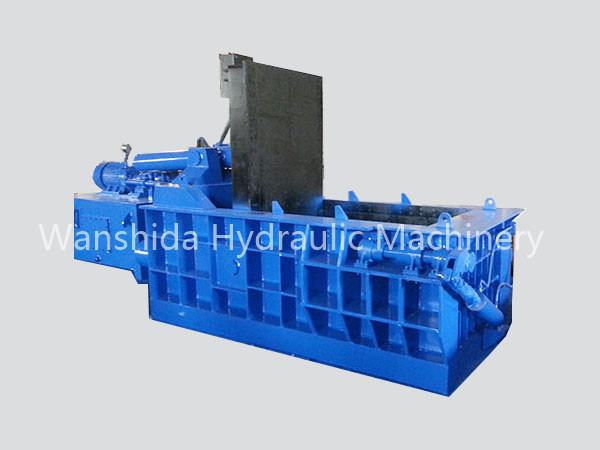

Y83 series metal hydraulic baler is capable of extruding various metal leftover materials, steel paring, waste copper, aluminum, copper, stainless steel and scraped car materials into qualified charging such as square column, cylinder, octagon body and other sharps, in a bid to reduce transportation & refining costs, and increase transportation speed. Such baler is mainly used in steel plants, reclamation & processing industry and nonferrous & ferrous metal refining industry.
①Such machineries adopt hydraulic drives, with manual or PLC automatic control operation as options.
②The discharging types fall into turning over, push out, forward out and manual lifting.
③It is unnecessary to fix foot screws and a diesel engine can be used in case of power supply unavailability.
④The extrusion force ranges from 63t to 400t, totaling 10 grades for customers’ selection, and productivity being from 4t/shift to 40t/shift.
⑤The size of the compression chamber and the form and size of the bale can be designed and customized according to the requirements of the customers.
| No. | Model | Nominal Force | Chamber size | Bale section | Power | Operation |
|---|---|---|---|---|---|---|
| 1 | Y83/F-160A | 1600kN/160t | 1600×1000×800mm |
350×350mm 400×400mm | 22/30kW | Manual Valve operation |
| Y83/F-160B | 1600×1200×800mm |
350×350mm 400×400mm | ||||
| Y83/F-160C | 1400×900×700mm | |||||
| 320×320mm | 30kW | |||||
| 2 | Y83/F-200A | 2000kN/200t | 1600×1000×800mm |
350×350mm 400×400mm | 30/37kW | |
| Y83/F-200B | 1600×1200×800mm |
350×350mm 400×400mm | ||||
| Y83/F-200C | 1600×1200×900mm | 450×450mm | ||||
| Y83/F-200D | 1800×1400×800mm |
400×400mm 450×450mm | ||||
| Y83/F-200E | 1800×1400×900mm |
500×500mm 450×450mm | ||||
| Y83/F-200F | 2000×1400×900mm | 450×450mm | ||||
| 3 | Y83/F-250A | 2500kN/250t | 2000×1400×900mm |
450×450mm 500×500mm | 44/60kW | |
| Y83/F-250B | 2000×1750×1000mm | 500×500mm | ||||
| Y83/F-250C | 2000×1750×1200mm | 600×600mm | ||||
| Y83/F-250D | 2000×1200×1200mm | 600×600mm | ||||
| 4 | Y83/F-315A | 3150kN/315t | 2000×1750×1200mm | 500×500mm | 90kW | |
| Y83/F-315B | 2600×1750×1200mm |
500×500mm 600×600mm | ||||
| Y83/F-315C | 2500×2000×1200mm | 600×600mm |
